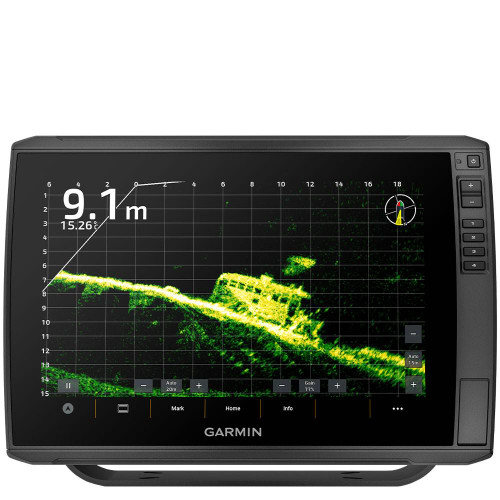

This versatile Garmin chartplotter puts a world of fishfinding capability at your fingertips. ULTRA 2 supports Garmin Navionics+ and Garmin Navionics Vision+ mapping, and the transducer bundle adds ultra high-definition scanning sonars, as well as CHIRP traditional sonar.

The ECHOMAP Ultra 2 series is fully compatible with Garmin's complete range of LiveScope live-scanning sonar systems (transducers sold separately). Enhanced vivid colour palettes for scanning sonar provide high contrast, making it easier than ever to identify fish and underwater structures. Upgrade your chartplotter’s appearance and functionality with optional Garmin Navionics+ or premium Garmin Navionics Vision+ charts - offering integrated coastal and inland mapping, daily updates, Auto Guidance+ technology, and more.

If you have an additional compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on board, you can share data wirelessly - including sonar, waypoints, and routes - between devices.

Enjoy greater GPS accuracy with multi-band positioning. The system is NMEA 2000 compatible, allowing easy connection to heading sensors, autopilots, Fusion-Link audio systems, and other marine electronics. Connect the unit to the free ActiveCaptain app for software updates, screen recording, access to Garmin Quickdraw Community maps, and more. You can also wirelessly link with your Force trolling motor to follow routes, navigate to waypoints, and control the motor directly from your chartplotter. The quick-disconnect bail mount ensures fast and easy installation or removal.

Garmin's GT56 transducer delivers Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonar for near-photographic views beneath the water's surface.

What's In The Box?

ECHOMAP Ultra 102sv.
GT56UHD-TM transducer (Please select).
Power Cable.
Bail Mount With Quick Release Cradle.
Protective sun cover.
Hardware.
Documentation.

Technical Specifications:

General:
Dimensions: 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
Weight: 1.8 kg (4 lbs).
Water rating: IPX7
Touchscreen: Yes.
Display Type: WXGA, IPS.
Display Size: 21.7 x 13.6 cm; 21.7 cm diagonal (8.5″ x 5.4″; 10″ diagonal).
Display Resolution: 1280 x 800 pixels.
Mounting Options: Bail or flush.
Input: Touchscreen with Keyed Assist.

Maps & Memory:
Accepts Data Cards: 2 microSD Cards.
Waypoints: 5000.
Track points: 50,000.
Tracks: 50 saved tracks.
Navigation Routes: 100.

Sensors:
GPS: Yes.
GLONASS: Yes.
Galileo: Yes.
BeiDou: Yes.
Has built-in receiver: Yes.
Receiver: 10 Hz.
NMEA 2000 compatible: Yes.
Supports WAAS: Yes.
Supports multi-band, multi-constellation GPS: Yes.

Optional Map Support:
BlueChart g3: Yes.
BlueChart g3 Vision: Yes.
Garmin Navionics+: Yes.
Garmin Navionics Vision+: Yes.
TOPO 100K: Yes.
Standard Mapping: Yes.
Garmin Quickdraw Contours: Yes.

Chartplotter Features:
AIS: Yes.
DSC: Yes.
Supports Fusion-Link compatible radios: Yes.
ActiveCaptain Mobile Planning Compatible: Yes.
Sailing features: Yes.

Electrical Features:
Power Input: 9 to 18 Vdc.
Typical current draw at 12 Vdc: 2.3A.
Maximum current draw at 12 Vdc: 5A.
Maximum power usage at 10 Vdc: 34W.

SONAR Features & Specifications:
Displays sonar: Yes.
Power output: 600W.
Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP).
ClearVü: Built-in 260/455/800/1000/1200 kHz.
SideVü: Built-in 260/455/800/1000/1200 kHz.
Panoptix sonar: Yes.
LiveScope: Yes.

Connections:
NMEA 2000 ports: 1
Garmin Marine Network Ports: 2 (large connector)
12-pin transducer ports: 12-pin scanning sonar
ANT® (Connectivity): Yes.
Garmin Wi-Fi network (local connection): Yes.
