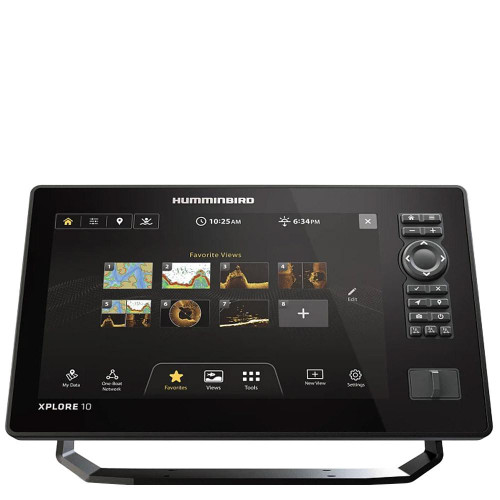

Humminbird's XPLORE 10.1 Fishfinder sets a new benchmark for anglers who demand speed, precision, and cutting-edge technology. Designed to help you find and target fish with unmatched efficiency, XPLORE gives you instant access to detailed waterways and coastal coverage. A next-generation waypoint management system allows you to sync up to 10,000 customised fishing locations - complete with personalised colours and icons, straight to your phone.
With full compatibility for MEGA Live 2 forward-facing sonar (sold separately), XPLORE provides exceptional real-time visibility of fish movement and behaviour. The unit also integrates seamlessly with Minn Kota products through the One-Boat Network, enabling advanced GPS features, shallow-water anchor control, and complete boat integration from one screen.
At the heart of the system is a Full HD 1280 x 720 display with Cross Touch control, offering superb clarity whether you're navigating via touchscreen or keypad. XPLORE supports Humminbird’s most advanced sonar imaging, including MEGA Side Imaging+ for crystal-clear detail up to 200 ft either side of your vessel, and MEGA Down Imaging+ for dramatically improved clarity down to 200 ft below. Dual Spectrum CHIRP Sonar provides precise target separation with both wide-area and fine-detail search modes, ensuring total confidence before every cast.
Navigating new waters is effortless thanks to the enhanced internal GPS and Humminbird Basemap, showing underwater terrain, navigation markers, hazards, marinas, contours, and more. XPLORE is also compatible with premium chart options, including LakeMaster, CoastMaster, and a wide range of Navionics charts, giving UK anglers comprehensive mapping flexibility.
For those who want to tailor their data even further, SmartStrike automatically identifies the most promising fishing spots based on live conditions, while AutoChart Live lets you create custom maps in real time - tracking contours, vegetation and bottom hardness with eight hours of built-in recording and optional expansion.
XPLORE is built for total system connectivity, featuring Ethernet networking for linking additional fish finders, CHIRP Radar, or Minn Kota i-Pilot Link, along with Bluetooth® for wireless control of Talon or Raptor anchors and Cannon Optimum downriggers. A built-in NMEA 2000 port allows you to display vessel, environmental, and performance data from connected onboard systems.
Ideal for flush-mount installations, XPLORE may require an external GPS antenna for maximum accuracy. Every unit is backed by a 3-year UK warranty with registration, offering long-term support and peace of mind.
XPLORE combines the most advanced sonar technologies, full-system integration, and effortless usability - giving UK anglers everything they need to fish smarter, navigate confidently, and make the most of every moment on the water.
What's In the Box?
XPLORE Control Head.
10 ft Power Cable.
XPLORE Mounting Bracket & Mounting Hardware.
Premium Silicone Unit Cover.
XM 14 HW MSI T - Transom-Mount Transducer (if selected).
Specifications:
Display Size - Diagonal: 10.1".
Length: 12.1" | 30.73 cm.
Height: 7.25" | 18.41 cm.
Width: 3.3" | 8.38 cm.
Weight: 4 lb 12 oz | 2.15456 kg.
Display Pixel Matrix: 1280H x 800V.
Transducer Included: XM 14 HW CMSI T.
Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2.
Features: Touch Screen, Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi, MEGA Imaging.
Memory Card Slot: Dual Micro SD.
Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+.
Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB.
Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low.
CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz).
Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA.
Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer).
CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz).
Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz).
Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 400 ft (MEGA).
Interface: Touch Screen, Keypad Control.
Power Draw: 2.2 Amps.
Power Input: 10.8-20 VDC.
Power Output Peak-to-Peak: 8000 Watts.
Power Output RMS: 1000 Watts.
Screen Snap Shot: Included.
Sonar Recording: Included.
Mount-Standard: Gimbal.
Mount-Standard Size: 12.098" W x 7.702" H x 3.891" D.
Mount-Optional: In-Dash Mounting Kit.
Mount-Optional Size: 12.098" W x 7.702" H x 3.891" D.
Transducer Mount Location: Transom.
GPS Chartplotting: Included.
GPS Receiver: Internal.
GPS Trackplotting: Not Supported.
Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000.
360 Imaging Compatibility: Yes.
MEGA Live Compatibility: Yes.
Humminbird Basemap: Included.
LakeMaster Compatibility: Yes.
CoastMaster Compatibility: Yes.
Navionics Gold/HotMaps Compatibility: Yes.
Navionics Platinum+ Compatibility: Yes.
Platinum Compatibility: Yes.
Minn Kota Advanced GPS Navigation Compatibility: Yes.
Minn Kota i-Pilot Link Compatibility: Yes.
Minn Kota Talon Shallow Water Anchor Compatibility: Yes.
Radar Compatibility: Yes.
5-Port Ethernet Switch Compatibility: Yes.
AIS Compatibility: Optional.
Autopilot Compatibility: No.
Heading Sensor GPS Compatibility: No.
Heading Sensor GPS (NMEA 2000) Compatibility: Yes.
NMEA2000: Included.
Target Separation: 2.5".
Upgradable Software: Yes.
View Preset Keys: Yes.
X-Press Menu System: Yes.
Custom Digital Readout: Yes.
Custom View Selections: Yes.
Display Colors Grayscale: 24-Bit.
Display Type: Color TFT.
Speed: Included.
Temperature: Built In.
Temperature Alarm: Yes.
Temperature Graph: Yes.
HDMI Compatible: No.
Warranty: Three-Year Warranty with Registration.
