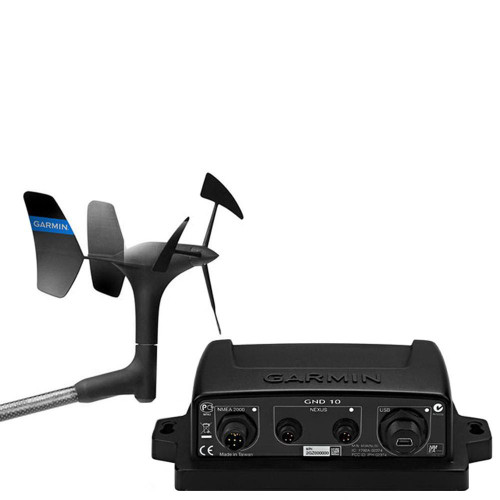

Garmin gWind Mast Head Transducer with GND10 Black Box & 25m Mast Cable

An easy to install wind instrument that provides accurate wind information.

Garmin's gWind transducer features twin-fin technology with a 3-bladed propeller, providing accurate true wind speed in lighter air. In addition, unlike a cup design, a 3-bladed propeller is always efficient. The twin-fin design provides a stable true wind angle. When combined with optic reading, the transducer provides superior accuracy at low wind speeds and also provides excellent linearity.

ALso included is GND10 black box bridge that enables the Nexus Network and compatible Garmin chartplotters to share critical NMEA 2000 data. The GND10 enables Garmin chartplotter owners to use nexus sail equipment, and vice versa.

Key Features:

Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB.
GND10 black box bridges NMEA 2000 data to Nexus network and enables Garmin compatible chartplotters to integrate with Nexus sail equipment and vice versa.
Optic reading technique for superior performance at low wind speeds, with excellent linearity.
Three-bladed propeller for accurate true wind speed in lighter air.
Twin-fin design provides a stable true wind angle.

What's In The Box?

gWind transducer.
GND 10.
NMEA 2000 drop cable (2 m).
NMEA 2000 T-connector.
Mast cable with female connector (25 m).
Nexus female field installable connector.
Mast bracket.
Mounting hardware.
Documentation.

Technical Specifications:

gWind:
Dimensions (W x H): 610 x 345mm.
Weight: 260g.
Cable Length: 25m.
Waterproof: IPX-6 (protected against heavy seas).
Temp Range: From -15°C to 70°C.
Storage temperature: From -20° to 80°C.
Voltage Range: 9-16V.
Power Usage: 0.33W.
Typical current draw at 12 VDC: 28mA.
Compass Safe Distance: N/A.
Accuracy Angle: Better than ±1.5°.
Speed: Better than ±3%.
Wind speed range: 0. 8-90 knots (0. 4-50 m/s).
NMEA 2000 Load Equivalency Number (LEN): N/A.
Wireless Connectivity: No.

GND 10:
Dimensions (W x H x D): 170 x 90 x 50mm.
Weight: 196g.
Waterproof: Yes (IPX7).
Temp Range: From -15°C to 70°C.
Voltage Range: 9-16V.
Power Usage: 0.52W.
Compass Safe Distance: 0.1m.
Accuracy Angle: N/A.
Speed: N/A.
NMEA 2000 Load Equivalency Number (LEN): 4.
Wireless Connectivity: No.

Compatible With:

echoMAP CHIRP 55dv.
echoMAP CHIRP 75dv.
echoMAP CHIRP 75sv.
echoMAP CHIRP 92sv.
echoMAP CHIRP 95sv.
ECHOMAP Plus 65cv.
ECHOMAP Plus 72cv.
ECHOMAP Plus 75cv.
ECHOMAP Plus 75sv.
ECHOMAP Plus 95sv.
ECHOMAP UHD 65cv.
ECHOMAP UHD 75cv.
ECHOMAP UHD 75cv.
ECHOMAP UHD 95sv.
ECHOMAP Ultra 102sv (with or without GT56UHD-TM Transducer).
ECHOMAP Ultra 122sv (with or without GT56UHD-TM Transducer).
GMI 10 Marine Instrument
GMI 20.
GNX 120 7-inch Large Format Marine Instrument.
GNX 130 10-inch Large Format Marine Instrument.
GNX 20.
GNX 21.
GNX Wind.
GPSMAP 1020
GPSMAP 1020xs
GPSMAP 1022
GPSMAP 1022xsv
GPSMAP 1222
GPSMAP 1222 Plus
GPSMAP 1222 Touch
GPSMAP 1222xsv
GPSMAP 1222xsv Plus
GPSMAP 1222xsv Plus Bundle
GPSMAP 1222xsv Touch
GPSMAP 1223, Non-sonar with Worldwide Basemap
GPSMAP 1223xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap.
GPSMAP 4008
GPSMAP 4010
GPSMAP 4012
GPSMAP 5008
GPSMAP 5012
GPSMAP 5015
GPSMAP 6008
GPSMAP 6012
GPSMAP 7012
GPSMAP 7015
GPSMAP 721
GPSMAP 721xs
GPSMAP 722
GPSMAP 722 Plus
GPSMAP 722xs
GPSMAP 722xs & GMR 18HD+ bundle
GPSMAP 722xs Plus
GPSMAP 722xs Plus Bundle
GPSMAP 723, Non-sonar with Worldwide Basemap
GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap.
GPSMAP 7407
GPSMAP 7407xsv
GPSMAP 7408
GPSMAP 7408xsv
GPSMAP 7410
GPSMAP 7410xsv J1939
GPSMAP 7412
GPSMAP 7412xsv
GPSMAP 7416
GPSMAP 7416xsv
GPSMAP 751
GPSMAP 751xs
GPSMAP 8008 MFD
GPSMAP 8012 MFD
GPSMAP 8015 MFD
GPSMAP 820
GPSMAP 820xs
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8416
GPSMAP 8416xsv
GPSMAP 8417 MFD
GPSMAP 8422 MFD
GPSMAP 8424 MFD
GPSMAP 8500 Black Box
GPSMAP 8530 Black Box
GPSMAP 8700 Black Box
GPSMAP 922
GPSMAP 922 Plus
GPSMAP 922xs
GPSMAP 922xs & GMR 18HD+ Bundle
GPSMAP 922xs Plus
GPSMAP 922xs Plus Bundle
GPSMAP 923, Non-sonar with Worldwide Basemap
GPSMAP 923xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap.
Volvo Penta Glass Cockpit System
