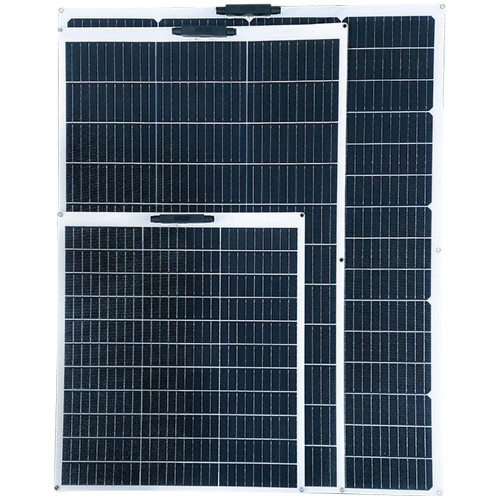

Seago solar panels are built for the outdoors. Thanks to an advanced EVA backing and tough, UV resistant ETFE coating, Seago solar panels offer exceptional resistance against weather, wear and corrosion, ensuring long pasting performance, wherever you are.
The panels have a flexible design (3 degrees flexibility or 3cm per 1m of panel length) which enables them to be seamlessly mounted on curved or uneven surfaces, making them perfect for application on boats, campervans, off-grid cabins and much, much more. Despite their slim profile (2mm), the solar panels offer impressive power output.
MPPT Controller:
Included in the kit is a solar MPPT controller (along with 2 x 3m cables with MC4 connectors) which delivers a high charging efficiency. Although it may not provide 100% true MPPT functionality, the controller still offers reliable performance, with a tracking efficiency of no less than 99.5%. The controller offers voltage protection, discharge current protection, charge protection and over temperature protection. In addition, the controller has a multi-function LCD display with backlight and clock display and 7 operating modes which are: light control mode, light control + time delay control mode, universal control mode, manual control mode, timing control mode. Compatible with Seal, GEL, Flooded, LifePO4 battery charging.
Full Kit Includes:
Solar panel, MPPT Controller, 2 x 3m cables with MC4 connectors.
Key Features:
- 3 degrees flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes.
- 4mm single core cable fitted with type MC4 connectors (900mm length).
- Aluminium substrate.
- Can be conveniently placed on slightly curved solid surfaces.
- Can be easily bonded using fixing adhesive, with no need for drilling.
- Highly efficient monocrystalline cells.
Solar Panel Specifications:
| Specifications | 50W | 100W | 150W |
| Power Tolerance | ±3% | ±3% | ±3% |
| Operating Voltage (Vmp) | 18±0.1V | 18±0.1V | 18±0.1V |
| Operating Current (Imp) | 2.7A±0.5A | 5.5A±0.5A | 8.3A±0.5A |
| Short Circuit Current (Isc) | 3.14A±0.5A | 6.04A±0.5A | 9.14A±0.5A |
| Operating Circuit Voltage (Voc) | 21.6V±0.8V | 21.6V±0.8V | 21.6V±0.8V |
| Maximum System Voltage | 1000V | 1000V | 1000V |
| Product Size (mm) | 560 x 500 x 2mm | 580 x 930 x 2 | 770 z 970 x 2 |
MPPT Controller Specifications:
| Specification | Details |
| Battery Voltage | 12 / 24V |
| Charging Current | 10 / 20A |
| Maximum Solar Input (Voc) | 60V |
| Maximum PV Input Power | 260W (12V battery), 520W |
| USB Port | DC 5V / 1.5A x 2 USB |
| Operating Temperature | -25C ～ 55C. |
